    Peak power and my new CA speaker system

    I always wondered about this but what does total system peak power mean? Like example my new Cyber Acoustics CA-3554 speaker system says 32 watts total RMS and 68 watts total system peak power. Does this mean that my speakers are technicaly has 68 watts of power? Or are they still 32 watts? I heard that RMS means that the speaker actualy have double the power like example if a speaker is only 15 watts RMS then it goes upto 30 watts total power.



    I got these speakers at Radio Shack for $52.99 plus 0.07% tax so it was total of $56.70 I actualy paid. They have alot of bass since they have a power pro series 6 and a half inch sub. Here are new pics of my speakers. They actualy look really nice. I so far have had these nice speakers for a month. They go pretty loud for my bedroom. They have gold plated plugs and connections so that's good.

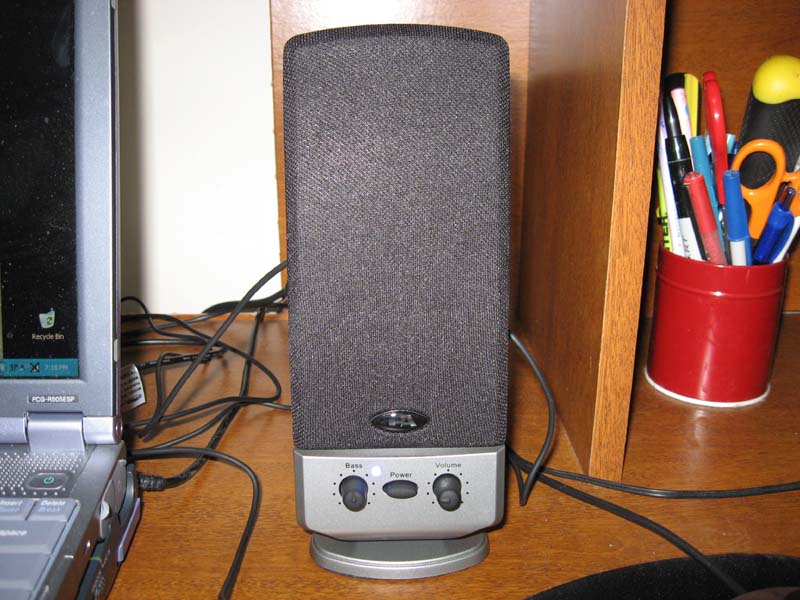

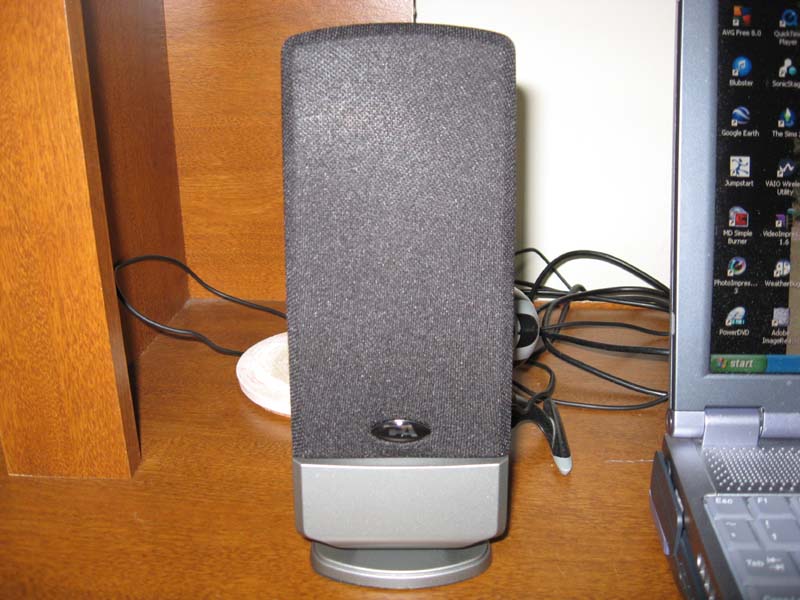

    Attached Thumbnails Attached Thumbnails Peak power and my new CA speaker system-img_0856.jpg   Peak power and my new CA speaker system-img_0857.jpg   Peak power and my new CA speaker system-img_0858.jpg
    Dallas's Forums

    MORE THAN JUST DINOSAURS!!!


  2. #2
    _ Luvin Da Blues's Avatar
    Join Date
    Jan 2007
    Location
    _
    Posts
    1,951
    Dallas, how's it going man. Good to see you back.
    Back in my day, we had nine planets.

  3. #3
    Suspended Smokey's Avatar
    Join Date
    Jan 2004
    Location
    Ozarks
    Posts
    3,959
    Quote Originally Posted by SpankingVanillaice
    I always wondered about this but what does total system peak power mean?
    Peak Power is amount of headroom an amplifier have that can handle music peaks or spikes. It is more related to quality (distortion) than quantity (volume).

    Like example my new Cyber Acoustics CA-3554 speaker system says 32 watts total RMS and 68 watts total system peak power. Does this mean that my speakers are technically has 68 watts of power? Or are they still 32 watts?
    Your speakers have 32 watts of (usable) power. But you also can say speakers have 68 watts of power as long as power is labeled "Peak"

    I heard that RMS means that the speaker actually have double the power like example if a speaker is only 15 watts RMS then it goes upto 30 watts total power.
    Are you refering to speaker or amplifier power?

    For amplifier, that statement is not correct. Without knowing Dynamic Headroom and THD (Total Harmonic Distortion) of amplifier, you can not make such an assumption.

  4. #4
    Shostakovich fan Feanor's Avatar
    Join Date
    Jun 2002
    Location
    London, Ontario
    Posts
    8,127

    I believe so

    Quote Originally Posted by Smokey
    Peak Power is amount of headroom an amplifier have that can handle music peaks or spikes. It is more related to quality (distortion) than quantity (volume).

    Your speakers have 32 watts of (usable) power. But you also can say speakers have 68 watts of power as long as power is labeled "Peak"
    ...
    There is a no specific relationship between valid RMS, and peak / "music" power ratings; it depends on the amp or speaker in question.

    Basically RMS power pertains to the continuous power the amp can provide or the speaker can absorb, (32 watts sounds very high for desktop speakers, pardon my skepticism).

    In the case of ampliers specifically, peak or transient power can be more than twice the RMS if, for example, the amp has very large capacitors that can dump a lot of power instantaneously; on the other hand, the RMS might be limited, for example, by the amp's heat sinks or the transistors' temperature range of operation.

  5. #5
    Suspended Smokey's Avatar
    Join Date
    Jan 2004
    Location
    Ozarks
    Posts
    3,959

    Good discusion.

    Quote Originally Posted by Feanor
    (32 watts sounds very high for desktop speakers, pardon my skepticism).
    Not really. My PC speakers (Altec lansing 621) are rated at (RMS) 143 watts

    Beside, 32 watts split three way doesn't amount to much.
    Last edited by Smokey; 02-24-2009 at 10:22 PM.

  6. #6
    Dustin Broke is hot!!! SpankingVanillaice's Avatar
    Join Date
    Nov 2004
    Location
    Omaha, NE, USA
    Posts
    699
    Well here are the specs for my speaker system.




    System Power Output:
    32 watts total RMS
    Satellites - 6 watts/ch x 2 @ 4 ohm - 10% THD
    Subwoofer - 20 watts @ 4 ohm - 10% THD
    68 watts total system peak power

    Drivers:
    Satellites - 2.5" high efficiency, 4 ohm drivers
    Subwoofer - 6.5" Power Pro Series Driver
    Frequency Response:
    30HZ to 20KHZ

    S/N Ratio:
    Satellites  78dB
    Subwoofer  65dB

    Power:
    Internal, UL/UCL approved

    Dimensions:
    Satellites - (H) 7" x (W) 3.5" x (D) 2.5"
    Subwoofer - (H) 11.5" x (W) 8" x (D) 7.5"



    So basicaly the sub gets only 20 watts RMS and the satellites gets 6 watts RMS. Also it says it only goes low as 30hz but I have actualy played a 5hz tone and it really play it but I can't hear it since humans can only hear low as 20hz. Actualy at 20hz it's more of I can feel it than hear it.
    Dallas's Forums

    MORE THAN JUST DINOSAURS!!!


  7. #7
    Class of the clown GMichael's Avatar
    Join Date
    Apr 2005
    Location
    Anywhere but here...
    Posts
    13,243
    How do you know that it played the 5hz tone? Did you measure it with something?
    WARNING! - The Surgeon General has determined that, time spent listening to music is not deducted from one's lifespan.

  8. #8
    Suspended
    Join Date
    Jan 2003
    Posts
    4,380
    What did you do with the other 37 sets of speakers?

  9. #9
    Suspended
    Join Date
    Apr 2004
    Location
    Out there
    Posts
    6,777
    Quote Originally Posted by GM
    How do you know that it played the 5hz tone? Did you measure it with something?
    Sorry I missed this earlier because it needed to be deleted.
    Last edited by JohnMichael; 03-01-2009 at 08:01 AM.

  10. #10
    Class of the clown GMichael's Avatar
    Join Date
    Apr 2005
    Location
    Anywhere but here...
    Posts
    13,243
    Sorry I asked.
    WARNING! - The Surgeon General has determined that, time spent listening to music is not deducted from one's lifespan.

  11. #11
    Dustin Broke is hot!!! SpankingVanillaice's Avatar
    Join Date
    Nov 2004
    Location
    Omaha, NE, USA
    Posts
    699
    Well I do have a program called True RTA and it does measure your speakers if it plays a tone. So that's how I know it actualy plays it. Also there were other people who measure it and said it actualy goes low as 5hz.
    Dallas's Forums

    MORE THAN JUST DINOSAURS!!!


  12. #12
    Dustin Broke is hot!!! SpankingVanillaice's Avatar
    Join Date
    Nov 2004
    Location
    Omaha, NE, USA
    Posts
    699
    And for the rest of the speakers I had I sold them a long time agao to get some money out of them.
    Dallas's Forums

    MORE THAN JUST DINOSAURS!!!


  13. #13
    Suspended Smokey's Avatar
    Join Date
    Jan 2004
    Location
    Ozarks
    Posts
    3,959
    Quote Originally Posted by SpankingVanillaice

    System Power Output:
    32 watts total RMS
    Satellites - 6 watts/ch x 2 @ 4 ohm - 10% THD
    Subwoofer - 20 watts @ 4 ohm - 10% THD

    Personally, I wouldn’t go near anything that have higher than 1 % THD. Higher THD mean listening fatigue.

  14. #14
    _ Luvin Da Blues's Avatar
    Join Date
    Jan 2007
    Location
    _
    Posts
    1,951
    Quote Originally Posted by SpankingVanillaice
    Well I do have a program called True RTA and it does measure your speakers if it plays a tone. So that's how I know it actualy plays it. Also there were other people who measure it and said it actualy goes low as 5hz.

    Does it use a microphone? If not then your not actually measuring the speakers output. And I doubt your sound card would even play a 5Hz tone at any level.
    Back in my day, we had nine planets.

  15. #15
    Audio/HT Nut version 1.3a
    Join Date
    Jan 2008
    Posts
    1,085
    Quote Originally Posted by Rich-n-Texas
    His............................................... ..........5 times/sec.
    Knock it off Rich! My sternum is still rather sore especially when I laugh like a horse.

  16. #16
    Audio/HT Nut version 1.3a
    Join Date
    Jan 2008
    Posts
    1,085
    Quote Originally Posted by Smokey
    My PC speakers (Altec lansing 621) are rated at (RMS) 143 watts
    Our Black and Decker Toaster Oven is rated at 1200 watts.

  17. #17
    Forum Regular audio amateur's Avatar
    Join Date
    Mar 2006
    Location
    France
    Posts
    2,523
    Quote Originally Posted by Rich-n-Texas
    His 5 times/sec.
    That deserves an army of greenies... Sorry I can't give them to ya
    Last edited by JohnMichael; 03-01-2009 at 08:03 AM.

  18. #18
    Dustin Broke is hot!!! SpankingVanillaice's Avatar
    Join Date
    Nov 2004
    Location
    Omaha, NE, USA
    Posts
    699
    Yes I did use a microphone and this program can play from 1hz to 20khz. My PC can forsure play from 1hz to 20khz.
    Dallas's Forums

    MORE THAN JUST DINOSAURS!!!


  19. #19
    Dustin Broke is hot!!! SpankingVanillaice's Avatar
    Join Date
    Nov 2004
    Location
    Omaha, NE, USA
    Posts
    699
    I had to set the volume kinda low like around 30% to actualy be able to play 5hz since if you set it upto 50% or higher volume it just kinda distorts. I guess since this sub is only 20 watts RMS it doesn't have alot of power like those bigger subs that can go 100 watts RMS. But these speakers are loud so like setting the voulme around 50% is pretty loud.
    Last edited by SpankingVanillaice; 02-26-2009 at 07:32 AM.
    Dallas's Forums

    MORE THAN JUST DINOSAURS!!!


  20. #20
    Dustin Broke is hot!!! SpankingVanillaice's Avatar
    Join Date
    Nov 2004
    Location
    Omaha, NE, USA
    Posts
    699
    Quote Originally Posted by Smokey
    Personally, I wouldn’t go near anything that have higher than 1 % THD. Higher THD mean listening fatigue.
    Well most PC speakers are rated at 10% THD I noitced and if you get maybe those $200 systems or higher then ya maybe those are lower but most that are affordable prices like $100 or less are 10% THD.
    Dallas's Forums

    MORE THAN JUST DINOSAURS!!!


  21. #21
    Suspended Smokey's Avatar
    Join Date
    Jan 2004
    Location
    Ozarks
    Posts
    3,959
    Quote Originally Posted by SpankingVanillaice
    Well most PC speakers are rated at 10% THD I noitced
    Under $200, that is a truth. That is why if you are looking at systems under $200, pick a system that is high powered. Since 10% THD is rated at full power output, at typical lower power output for avarage listening, THD will be less.

    For example, look at this power specifications for my PC speakers. At lower power output, THD is less than 10%.




    If you get maybe those $200 systems or higher then ya maybe those are lower but most that are affordable prices like $100 or less are 10% THD.
    I think you can find a decent system for under $150. For example, this Logitech system from Bestbuy for $150 (on the web for $119, or wait till it goes on sale). 400 watts peak power



    http://www.bestbuy.com/site/olspage....=1186003898407

  22. #22
    Suspended Smokey's Avatar
    Join Date
    Jan 2004
    Location
    Ozarks
    Posts
    3,959
    Quote Originally Posted by RoadRunner6
    Our Black and Decker Toaster Oven is rated at 1200 watts.
    Your kitchen appliances need to go green

  23. #23
    Dustin Broke is hot!!! SpankingVanillaice's Avatar
    Join Date
    Nov 2004
    Location
    Omaha, NE, USA
    Posts
    699
    Come to think about it I use to have the Philips MMS321 PC speakers and they were rated at 80 watts. I guess 80 watts for a system without a sub is pretty good. I remember these costs the same as the Cyber Acoustics CA-3554 with a sub. It built might be better too since it's using $50 for just two speakers instead of 3 speakers like the Cyber Acoustics. From what I remember for around $50 the Philips ones sounded the best meaning clear bass, mids and highs. But too bad it didn't have gold plated connections. If it did it would of been a great system. But I guess if you want more clear sound then the Philips one might be better but if you want more bass then the Cyber Acoustics one would be better.
    Dallas's Forums

    MORE THAN JUST DINOSAURS!!!


  24. #24
    Dustin Broke is hot!!! SpankingVanillaice's Avatar
    Join Date
    Nov 2004
    Location
    Omaha, NE, USA
    Posts
    699
    Quote Originally Posted by Smokey
    Under $200, that is a truth. That is why if you are looking at systems under $200, pick a system that is high powered. Since 10% THD is rated at full power output, at typical lower power output for avarage listening, THD will be less.

    For example, look at this power specifications for my PC speakers. At lower power output, THD is less than 10%.






    I think you can find a decent system for under $150. For example, this Logitech system from Bestbuy for $150 (on the web for $119, or wait till it goes on sale). 400 watts peak power



    http://www.bestbuy.com/site/olspage....=1186003898407
    I have listen to those Logitech speakers and yes they did sound ok but I didn't know if it was worth $150. I guess if you want loud bass then maybe they are good or if you want to turn your speakers loud. Also the Cyber Acoustics I have are already loud since my mom says she can hear the bass even my room is downstairs. That's why I' am thinking to maybe get the Philips one instead then she won't hear the bass that much.
    Dallas's Forums

    MORE THAN JUST DINOSAURS!!!


  25. #25
    Suspended Smokey's Avatar
    Join Date
    Jan 2004
    Location
    Ozarks
    Posts
    3,959
    Quote Originally Posted by SpankingVanillaice
    I have listen to those Logitech speakers and yes they did sound ok but I didn't know if it was worth $150. I guess if you want loud bass then maybe they are good or if you want to turn your speakers loud.
    This is where you are going wrong. As it was said before, having higher power is not about getting louder. Even a 10 watt system can get pretty loud. Higher power mean better quality sound, not louder.

    To keep distorion low and reproduce music peaks and spikes, you need pretty good amount of power-there is no other way around it. That is why you keep going from one system to next. You are hearing distortion instead of music from those systems.
