    Sansa Clip 8GB & Cowon iAudio U5 Tests

    Used RMAA.

    Soundcard used is an Emu 1212m.

    Headphone simulation was done with a Y-splitter, with one end going to the Emu and the other to the headphone. I don't know if that's the correct way to do it.

    I also did tests using a Koss in-line volume control to add resistance or buffer between the headphones and the digital audio players' digitally attenuating jacks with the digital volume at max. This use of a volume control greatly reduces the current necessary.

    The Sansa has the higher current headphone jack under normal circumstances, though it lacks the Cowon's voltage reserves for extremely low sensitivity headphones. It is flat at any load.

    The Cowon has better inherent DAC capability, line out loading, and when a volume control is in line and the digital volume at max. Without the extra resistance, it appears to roll off the bass below 100hz with a total of 3-3.5dB down at 20hz. Sound EQ and other plentiful enhancements cannot help that.

    Separation and IMD improves on both when that volume control is in the path of the headphone.

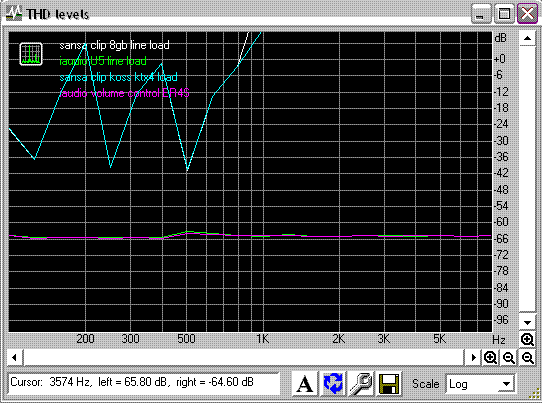

    I'm not sure what the THD sweep tests mean when the Sansa shows such high distortion. This doesn't show up in the other tests, just the final graph. Perhaps this is a sign of subtle clipping?

    Overall, both sound more liquid and less cold than the Apple iPod Nano 2nd Generation 4GB that went through the wash. Not bad for around $90 total shipped for the two.
    Attached Thumbnails Attached Thumbnails Sansa Clip 8GB & Cowon iAudio U5 Tests-sansa-cowan-tests-monochrome.gif   Sansa Clip 8GB & Cowon iAudio U5 Tests-sansa-cowan-responses.gif   Sansa Clip 8GB & Cowon iAudio U5 Tests-sansa-cowan-thd-swept-freq.gif   Sansa Clip 8GB & Cowon iAudio U5 Tests-sansa-iaudio-volume-control-resistance-tests-monochrome.gif   Sansa Clip 8GB & Cowon iAudio U5 Tests-sansa-cowan-volume-control-test-responses.gif


  2. #2
    Forum Regular
    Join Date
    Feb 2002
    Posts
    64
    I got courageous and decided to try the ER4S without the volume control at full volume. I hope that doesn't damage them. The numbers look good. Noise and dynamics at 90 on the Cowon and 88 dBA on the Sansa. Separation is around -63 on both, with Cowon having better separation in the mids and the Sansa in the frequency extremes. There is only a -0.5dB reduction on the Cowon at 20hz and 20khz, now. IMD is quite good, though not as low as just into a line input, with the Sansa having a slight edge.

    Overall the U5 performed much better with the Ety than I expected considering how the KTX4 and earbuds loaded it. I should mention that in all the tests, the Sansa’s stereo phase alignment was about 10 degrees worse. Tonally, I find the U5 a touch smoother with the ER4S and no volume control, while I find the Sansa a bit more liquid with all the other earbuds and headphones. Clearly any subjective comparison using headphones below 100ohm directly into the U5 is unfair, though.

  3. #3
    Forum Regular
    Join Date
    Feb 2002
    Posts
    64

  4. #4
    Forum Regular
    Join Date
    Feb 2002
    Posts
    64
    And here are the first nine again.

    http://img33.imageshack.us/gal.php?g...tsmonochro.gif

  5. #5
    Forum Regular
    Join Date
    Feb 2002
    Posts
    64
    I was told the in-line volume attenuation after the jack was a very bad idea, so that was only a brief experiment.

  6. #6
    Forum Regular harley .guy07's Avatar
    Join Date
    Aug 2009
    Location
    Springfield, Mo
    Posts
    1,594
    Well it is good to see that the sansa clip is a good player especially for the price and so is the Cowon. I actually did not know to much about the Cowon before buying my clip but so far I have been more than impressed with the clip for what it does for the price and the fact that it is so small and plays almost every file type(or at least the ones I care about) out there. I just ordered new cans and a portable headphone amp for it so I am waiting for them to come in and I will see what that will do.

    Marantz SR5008(HT)
    Nu Force P8 Preamp (2 channel)
    Pass Labs X150.5(2 channel)
    Adcom 545 mk2 power amp(rear channel amp)
    Spatial Audio M3 Turbo S Mains Speakers
    Dayton 8" HO custom sealed subwoofer(2 channel)
    Yamaha NS-c444 center channel
    Emotiva ERD-1 surround speakers
    JBL e250p subwoofer highly modified
    Samsung 46" LED TV
    OPPO BDP-83 blue ray/multi format player
    ps-audio NuWave dac (2 channel)
    Dell I660 music server running fidelizer windows 8 audio optimizer
    PS Audio Quintet power center



  7. #7
    Forum Regular
    Join Date
    Nov 2011
    Posts
    9
    I've been interested in the cowon for awhile now. Thanks for the data.

  8. #8
    Forum Regular
    Join Date
    Apr 2012
    Location
    LA,USA
    Posts
    12
    you should take out the attenuator/resistor which will eschew the results in favour of frequency response signal/noise ratio and maybe a few other things. Typically, you should have nothing but naked signal between the y-splitter, the headphones and the amp. Also, if any attenuator is in the cable of the line to the emu, there will be problems reading the output.

  9. #9
    AR Newbie Registered Member
    Join Date
    Apr 2012
    Posts
    1
    good, thanks for sharing with us.


    really very good

  10. #10
    Phila combat zone JoeE SP9's Avatar
    Join Date
    Jun 2003
    Location
    Philadelphia, PA
    Posts
    2,705
    So harley .guy07; how did it go with new cans and a headphone amp? I'm asking because I bought a Sansa 4GB ClipZip and a pair of Grado SR-60's. Wondering if I should look into a headphone amp.

    I also splurged with a 32GB Micro SD card. I'm using only FLAC files.

    I'm putting favorite songs on it. No need to do my entire collection. A couple hundred songs will do.
