    subwoofer... passive or powered?

    which is the better performer in terms of accuracy, or is it a moot point?

    i'm considering adding a dedicated sub that can get down in the mid-20hz. my receiver should be able to drive a passive sub without problem, and if not i have some beefy power amps that can do the job without question. my ht rig is a music first system, so i prefer sound quality over quantity.
    AR MGC-1, AR C225 PS, M&K V-1B, Pioneer VSX 47TX, Oppo BDP-83, Squeezebox v3, Vortexbox Appliance.

  2. #2
    Forum Regular pixelthis's Avatar
    Join Date
    Apr 2007
    Location
    tuscaloosa
    Posts
    5,628

    Cool

    Quote Originally Posted by dingus
    which is the better performer in terms of accuracy, or is it a moot point?

    i'm considering adding a dedicated sub that can get down in the mid-20hz. my receiver should be able to drive a passive sub without problem, and if not i have some beefy power amps that can do the job without question. my ht rig is a music first system, so i prefer sound quality over quantity.
    Most subs are powered these days. THERES something called a "plate amp" on
    the back, and most of these are quite good.
    My sub came with a 600w amp, which died when a friend borrowed it, so I
    canabalized another sub for its 130w amp, which works fine in my small room.
    If you really want a power amp or something else to power a sub, you can buy a
    kit and build your own, and power it anyway you want, or buy a sub and take the amp off of the back.
    But it will give little if any improvement over the plate amp that comes with most subs,
    just complicate the plumbing, is all.
    Attached Images Attached Images
    LG 42", integra 6.9, B&W 602s2, CC6 center, dm305rears, b&w
    sub asw2500
    Panny DVDA player
    sharp Aquos BLU player
    pronto remote, technics antique direct drive TT
    Samsung SACD/DVDA player
    emotiva upa-2 two channel amp

  3. #3
    Suspended markw's Avatar
    Join Date
    Dec 2001
    Location
    Noo Joisey. Youse got a problem wit dat?
    Posts
    4,676
    You're gonna have to figure on a low-pass filter (at least) somewhere in the mix.

  4. #4
    Class of the clown GMichael's Avatar
    Join Date
    Apr 2005
    Location
    Anywhere but here...
    Posts
    13,641
    Both can get you very nice results. I built a passive sub and mated it with a 4000 watt external amp. It works great. But I've also heard some very nice subs with the plate amps built in.
    The build quality will make the bigger difference.
    WARNING! - The Surgeon General has determined that, time spent listening to music is not deducted from one's lifespan.

  5. #5
    Forum Regular
    Join Date
    Oct 2005
    Posts
    867
    I would recommend powered over passive. I don't know of any receivers which have a powered output for a sub. Connecting a passive sub to a receiver would require connecting your mains via the sub's speaker level inputs, thus sharing the power from the main channels with the sub.

    Having a powered sub would reduce the strain on the main channels and free up power for mid and high freq reproduction. Especially if you are considering a sub which can reproduce appreciable levels in the 20Hz-30Hz range which takes a low of power.

    Most receiver can't even produce rated output with all channels driven. Adding a sub to the mix would reduce the available power to all channels that much more. Unless you have a flagship receiver weighing 45+lbs (due mostly likely to a larger transformer) and 120+W/ch go with a powered sub. If you're a bass guy who likes bass very low and very loud go with a good powered sub.

    If you can't swing the cash for a good powered sub. You can still get decent bass with a lesser one and utilize corner placement. From what I've read, corner placement can increase perceived output by 6 - 9 db.

  6. #6
    Class of the clown GMichael's Avatar
    Join Date
    Apr 2005
    Location
    Anywhere but here...
    Posts
    13,641
    Yeah, I wouldn't drive the sub with your receiver's amp. You'll want another amp. Either a built in one or external will work.
    WARNING! - The Surgeon General has determined that, time spent listening to music is not deducted from one's lifespan.

  7. #7
    M.P.S.E /AES/SMPTE member Sir Terrence the Terrible's Avatar
    Join Date
    Jul 2002
    Posts
    6,799
    Quote Originally Posted by bfalls
    I would recommend powered over passive. I don't know of any receivers which have a powered output for a sub. Connecting a passive sub to a receiver would require connecting your mains via the sub's speaker level inputs, thus sharing the power from the main channels with the sub.

    Having a powered sub would reduce the strain on the main channels and free up power for mid and high freq reproduction. Especially if you are considering a sub which can reproduce appreciable levels in the 20Hz-30Hz range which takes a low of power.

    Most receiver can't even produce rated output with all channels driven. Adding a sub to the mix would reduce the available power to all channels that much more. Unless you have a flagship receiver weighing 45+lbs (due mostly likely to a larger transformer) and 120+W/ch go with a powered sub. If you're a bass guy who likes bass very low and very loud go with a good powered sub.

    If you can't swing the cash for a good powered sub. You can still get decent bass with a lesser one and utilize corner placement. From what I've read, corner placement can increase perceived output by 6 - 9 db.
    B, this is not correct. You use the LFE output directly to an amp which amplifies the signal to the speakers. All of my H-PAS subs are passive, and that is how I hook them up

    Processor's> LFE output > Audyssey sub EQ > amp to speaker.

    I do not think either passive or active subs offer any advantage over the other. I use both types, and get great sound from both types. Calibration and room placement are more important than active or passive.
    Sir Terrence

    Titan Reference 3D 1080p projector
    200" SI Black Diamond II screen
    Oppo BDP-103D
    Datastat RS20I audio/video processor 12.4 audio setup
    9 Onkyo M-5099 power amp
    9 Onkyo M-510 power amp
    9 Onkyo M-508 power amp
    6 custom CAL amps for subs
    3 custom 3 way horn DSP hybrid monitors
    18 custom 3 way horn DSP hybrid surround/ceiling speakers
    2 custom 15" sealed FFEC servo subs
    4 custom 15" H-PAS FFEC servo subs
    THX Style Baffle wall

  8. #8
    Forum Regular
    Join Date
    May 2009
    Location
    Home Of The Fighting Gamecocks
    Posts
    1,860
    I have an outdoor passive sub which is driven off the amp speaker taps ( speaker level connection ), The sub then passes the signal on to two sat speakers which run full range.

    I'm building two 15 " H frame OB bass drivers which are passive in the sense that they are externally powered by a Dayton APA150 stereo amp which has it's own crossover control.

  9. #9
    Forum Regular
    Join Date
    Oct 2005
    Posts
    867
    Quote Originally Posted by Sir Terrence the Terrible
    B, this is not correct. You use the LFE output directly to an amp which amplifies the signal to the speakers. All of my H-PAS subs are passive, and that is how I hook them up

    Processor's> LFE output > Audyssey sub EQ > amp to speaker.

    I do not think either passive or active subs offer any advantage over the other. I use both types, and get great sound from both types. Calibration and room placement are more important than active or passive.
    My bad. I misread. I thought he wanted to go directly from his receiver. I use a similar config with my passive ACI Saturn compound sub, LFE out, Yamaha M-65 amp, sub with one system. Also to bi-amp my Legacy Focus' 3-12" woofers. UMC-1 LFE out, XPA-5, sub.

  10. #10
    stuck on vintage dingus's Avatar
    Join Date
    Nov 2005
    Location
    Graham, WA
    Posts
    345
    the receiver is the Pioneer in my sig, a 7.1 x 130wpc @ 8 ohm, 160wpc @ 6 ohm. even if that wont do it i can use one of my Yamaha amps, B-2x (170wpc) or M-2 (210wpc). even so, i wouldnt be opposed to a powered sub.

    Quote Originally Posted by Sir Terrence the Terrible
    Calibration and room placement are more important than active or passive.
    thats good info. i've never used a separate sub before. i got used to having all the bass i could handle with the 4x12" woofers in a pair of AR9's. what about ported -vs- acoustic suspension?
    AR MGC-1, AR C225 PS, M&K V-1B, Pioneer VSX 47TX, Oppo BDP-83, Squeezebox v3, Vortexbox Appliance.

  11. #11
    Forum Regular harley .guy07's Avatar
    Join Date
    Aug 2009
    Location
    Springfield, Mo
    Posts
    1,472
    There are plenty of subwoofers available that can fill a large room that cna go in your corner or otherwise. SVS is one I would recomend. also Hsu subwoofers are a good company from what I have read. You can build your own custom sub in your home it just takes the nohow in the driver selection,amp,and enclosure that you want to use. I once installed a trio of EV 18" subs with a QSC amplifier running 2 ohm with fan cooling in a guys basement and it was thunderous but he would turn them off for music which I don't blame him they were not meant for that anyway. My point is that the amount of bass you produce is not the quest it is how well and how detailed you can do it without disrupting the sonic flow from your main speakers and that they meat at grounds that you you cannot tell one from the other. That is the ultimate test of a sub, most cannot do it in that they put out something that gives them away like a sonic signature or a difference to the mains. Buts thats for music home theater is a different battle all together.

    Marantz SR5008(HT)
    Nu Force P8 Preamp (2 channel)
    Pass Labs X150.5(2 channel)
    Adcom 545 mk2 power amp(rear channel amp)
    Dynaudio audience 60 mains
    Dayton 8" HO custom sealed subwoofer(2 channel)
    Yamaha NS-c444 center channel
    Emotiva ERD-1 surround speakers
    JBL e250p subwoofer highly modified
    Samsung 46" LED TV
    OPPO BDP-83 blue ray/multi format player
    ps-audio NuWave dac (2 channel)
    Dell I660 music server running fidelizer windows 8 audio optimizer
    PS Audio Quintet power center



  12. #12
    Forum Regular pixelthis's Avatar
    Join Date
    Apr 2007
    Location
    tuscaloosa
    Posts
    5,628

    Cool

    Quote Originally Posted by GMichael
    Yeah, I wouldn't drive the sub with your receiver's amp. You'll want another amp. Either a built in one or external will work.
    THERES' nothing wrong with it, an amp is an amp.
    BEFORE I replaced the plate amp on my sub, I used one of the spare channels
    on my receiver to power my sub. WORKED fine, but you are correct in that it
    is not the preferred way of doing things. A good patch in a pinch, tho.
    ALSO, no reason you can't use an external amp to power a sub, just a waste of a decent amp, is all.
    A PLATE AMP IS DESIGNED to drive a sub, and it just works a lot better.
    LG 42", integra 6.9, B&W 602s2, CC6 center, dm305rears, b&w
    sub asw2500
    Panny DVDA player
    sharp Aquos BLU player
    pronto remote, technics antique direct drive TT
    Samsung SACD/DVDA player
    emotiva upa-2 two channel amp

  13. #13
    Forum Regular pixelthis's Avatar
    Join Date
    Apr 2007
    Location
    tuscaloosa
    Posts
    5,628

    Cool

    Quote Originally Posted by dingus
    the receiver is the Pioneer in my sig, a 7.1 x 130wpc @ 8 ohm, 160wpc @ 6 ohm. even if that wont do it i can use one of my Yamaha amps, B-2x (170wpc) or M-2 (210wpc). even so, i wouldnt be opposed to a powered sub.


    thats good info. i've never used a separate sub before. i got used to having all the bass i could handle with the 4x12" woofers in a pair of AR9's. what about ported -vs- acoustic suspension?
    A "PORTED" sub tends to produce a "huffing" sound as it pumps air in and out of its port, although this isn't a problem most of the time, but on a poorly designed sub it can
    be a bother.
    MAKING speakers is the last bastion of audios roots, which started out with kits to
    build amps, etc. AND its fun, but mostly a waste of time, really.
    A sub already built is just going to work a lot better. Only reason I messed with mine
    is that I really love my sub, it is very musical, and besides, if you can fix something
    that is a 1200$ item instead of chucking it, you do so.
    Mine is either a clone or a copy of a BOB carver mini sub, don't think you could easily
    replace it, not very cheaply, anyway.
    AS FOR PORTED vs sealed enclosure, I prefer the sealed type, just easier to place,
    IMHO.
    Attached Images Attached Images
    LG 42", integra 6.9, B&W 602s2, CC6 center, dm305rears, b&w
    sub asw2500
    Panny DVDA player
    sharp Aquos BLU player
    pronto remote, technics antique direct drive TT
    Samsung SACD/DVDA player
    emotiva upa-2 two channel amp

  14. #14
    Forum Regular N. Abstentia's Avatar
    Join Date
    Apr 2004
    Posts
    2,672
    Your receiver will never be able to power a sub properly. Get a powered sub, or an outboard amp if you get a passive sub.

  15. #15
    stuck on vintage dingus's Avatar
    Join Date
    Nov 2005
    Location
    Graham, WA
    Posts
    345
    i just pulled the trigger on an M&K V-1b, 12" powered sub. its a sealed enclosure and seems to be integrating nicely into the system so far. still a little bit of tweaking left to do before i'm totally happy with it.
    Last edited by dingus; 05-28-2011 at 12:26 PM.
    AR MGC-1, AR C225 PS, M&K V-1B, Pioneer VSX 47TX, Oppo BDP-83, Squeezebox v3, Vortexbox Appliance.

  16. #16
    Class of the clown GMichael's Avatar
    Join Date
    Apr 2005
    Location
    Anywhere but here...
    Posts
    13,641
    Next step is a BFD. For under $100 it's a huge addition to any sub.
    WARNING! - The Surgeon General has determined that, time spent listening to music is not deducted from one's lifespan.

  17. #17
    stuck on vintage dingus's Avatar
    Join Date
    Nov 2005
    Location
    Graham, WA
    Posts
    345
    whats a BFD?
    AR MGC-1, AR C225 PS, M&K V-1B, Pioneer VSX 47TX, Oppo BDP-83, Squeezebox v3, Vortexbox Appliance.

  18. #18
    Class of the clown GMichael's Avatar
    Join Date
    Apr 2005
    Location
    Anywhere but here...
    Posts
    13,641
    It's made to be a feedback destroyer to prevent feedback at live shows. But it turns out to be a great EQ for subwoofers as well.
    Check this link for a better explanation.
    http://bfdguide.ws/
    WARNING! - The Surgeon General has determined that, time spent listening to music is not deducted from one's lifespan.

  19. #19
    stuck on vintage dingus's Avatar
    Join Date
    Nov 2005
    Location
    Graham, WA
    Posts
    345
    ah yes, thank you!
    AR MGC-1, AR C225 PS, M&K V-1B, Pioneer VSX 47TX, Oppo BDP-83, Squeezebox v3, Vortexbox Appliance.

  20. #20
    Forum Regular pixelthis's Avatar
    Join Date
    Apr 2007
    Location
    tuscaloosa
    Posts
    5,628

    Cool

    Quote Originally Posted by N. Abstentia View Post
    Your receiver will never be able to power a sub properly. Get a powered sub, or an outboard amp if you get a passive sub.
    AU CONTRAIR, an amp is an amp, and my receiver is (or was)
    7.1 and my system 5.1. I RAN my sub off of one of the spare amps
    for months, until another plate amp availed itself to me.
    My receiver was 125wpc, and I didn't need nearly that much in
    my small listening room, NEVER had a problem, and again, it is not the optimum way to go, I AGREE WITH YOU, but it is not bad
    in a pinch.
    Attached Images Attached Images
    LG 42", integra 6.9, B&W 602s2, CC6 center, dm305rears, b&w
    sub asw2500
    Panny DVDA player
    sharp Aquos BLU player
    pronto remote, technics antique direct drive TT
    Samsung SACD/DVDA player
    emotiva upa-2 two channel amp

  21. #21
    Forum Regular N. Abstentia's Avatar
    Join Date
    Apr 2004
    Posts
    2,672
    Yeah I didn't say it couldn't be done...I just said it couldn't be done right!

  22. #22
    Forum Regular pixelthis's Avatar
    Join Date
    Apr 2007
    Location
    tuscaloosa
    Posts
    5,628

    Cool

    Quote Originally Posted by N. Abstentia View Post
    Yeah I didn't say it couldn't be done...I just said it couldn't be done right!
    It can be done in a way that works, which is always "right"
    even if sometimes not optimum.
    IN ALL THE TIME I ran a sub like this I never had a problem.
    LG 42", integra 6.9, B&W 602s2, CC6 center, dm305rears, b&w
    sub asw2500
    Panny DVDA player
    sharp Aquos BLU player
    pronto remote, technics antique direct drive TT
    Samsung SACD/DVDA player
    emotiva upa-2 two channel amp

  23. #23
    Class of the clown GMichael's Avatar
    Join Date
    Apr 2005
    Location
    Anywhere but here...
    Posts
    13,641
    Quote Originally Posted by pixelthis View Post
    It can be done in a way that works, which is always "right"
    even if sometimes not optimum.
    IN ALL THE TIME I ran a sub like this I never had a problem.
    But the OP was asking which was better. Using the amp in your/his receiver is surely not the better choice, unless he has no choice.
    WARNING! - The Surgeon General has determined that, time spent listening to music is not deducted from one's lifespan.

  24. #24
    Forum Regular pixelthis's Avatar
    Join Date
    Apr 2007
    Location
    tuscaloosa
    Posts
    5,628

    Cool

    Quote Originally Posted by GMichael View Post
    But the OP was asking which was better. Using the amp in your/his receiver is surely not the better choice, unless he has no choice.
    By all rights this method should be like one of those tire fix
    spray cans, because when a sub goes out its not always
    convenient
    HOWEVER days turned into months, and this "fix" worked fine
    THE truth is that a sub is probably never going to need even
    the paltry 125watts put out by my receiver channel . And levels,
    etc were easy to adjust.
    And this was a sub that came with a BASH 600w plate amp(its
    now running on a 130w). It may go against instincts, but at the end of the day, an amp is really just an amp.
    I know that the true power of a receiver is gaged by its power
    supply, how many amps is available to be distributed to each
    channel, and the power claims are usually about as optimistic
    as TREASURY forecasts, but I REALLY NEVER HAD A PROBLEM.

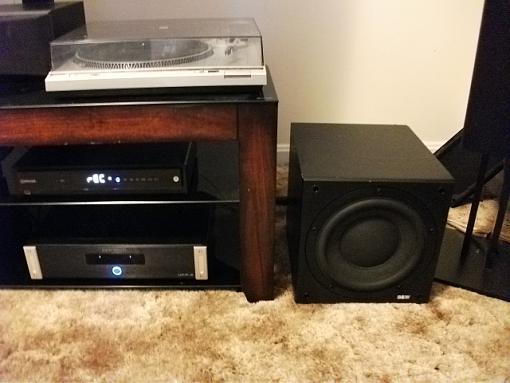

    Attached Images Attached Images
    LG 42", integra 6.9, B&W 602s2, CC6 center, dm305rears, b&w
    sub asw2500
    Panny DVDA player
    sharp Aquos BLU player
    pronto remote, technics antique direct drive TT
    Samsung SACD/DVDA player
    emotiva upa-2 two channel amp

  25. #25
    Class of the clown GMichael's Avatar
    Join Date
    Apr 2005
    Location
    Anywhere but here...
    Posts
    13,641
    Would you rather drive cross country with a tire that has a can of fix-o-flat in it or on 4 new tires? Sure, you may never have a problem with that tire, but if you had a choice, which would you pick?
    WARNING! - The Surgeon General has determined that, time spent listening to music is not deducted from one's lifespan.

Page 1 of 3 123 LastLast

Thread Information

Users Browsing this Thread

There are currently 1 users browsing this thread. (0 members and 1 guests)

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •

Latest AudioReview Articles

Hot Deals

Latest News

AudioReview on Facebook
