    Building your own HiFi rack/Stacking Amp on top of CD player

    Hi guys
    i am considering building a rack for my amp and cd player, as they are stacked on top of each other. Firstly, wanted to ask if anyone of u have had experience building one, and if so, what are the materials and guidelines needed in ensuring the right build? Also my secondary system is in a limited space, so i cant afford to place on a rack, hence the amp sits on the cdplayer, is this alright?
    Thanks in advance

  2. #2
    Phila combat zone JoeE SP9's Avatar
    Join Date
    Jun 2003
    Location
    Philadelphia, PA
    Posts
    2,710
    Go to TNT-Audio and check out the "Flexy" rack. I built a dual Flexy some time ago.
    ARC SP9 MKIII, VPI HW19, Rega RB300
    Marcof PPA1, Shure, Sumiko, Ortofon carts, Yamaha DVD-S1800
    Behringer UCA222, Emotiva XDA-2, HiFimeDIY
    Accuphase T101, Teac V-7010, Nak ZX-7. LX-5, Behringer DSP1124P
    Front: Magnepan 1.7, DBX 223SX, 2 modified Dynaco MK3's, 2, 12" DIY TL subs (Pass El-Pipe-O) 2 bridged Crown XLS-402
    Rear/HT: Emotiva UMC200, Acoustat Model 1/SPW-1, Behringer CX2310, 2 Adcom GFA-545

  3. #3
    Forum Regular blackraven's Avatar
    Join Date
    Nov 2006
    Location
    St. Paul, Minnesota
    Posts
    5,421
    Here are some nice wood racks. I am going to build one of these. If you use plywood for the shelf's, consider Baltic Burch finish grade. You can also use tempered glass and you can usually get it from some Auto Glass company's cut to size with finished edges.

    https://www.google.com/search?q=diy+...w&ved=0CB0QsAQ

    this is the one that I would like to build-

    Product Review
    Last edited by blackraven; 03-19-2015 at 11:03 AM.
    Pass Labs X250 amp, BAT Vk-51se Preamp,
    Thorens TD-145 TT, Bellari phono preamp, Nagaoka MP-200 Cartridge
    Magnepan QR1.6 speakers
    Luxman DA-06 DAC
    Van Alstine Ultra Plus Hybrid Tube DAC
    Dual Martin Logan Original Dynamo Subs
    Parasound A21 amp
    Vintage Luxman T-110 tuner
    Magnepan MMG's, Grant Fidelity DAC-11, Class D CDA254 amp
    Monitor Audio S1 speakers, PSB B6 speakers
    Vintage Technic's Integrated amp
    Music Hall 25.2 CDP
    Adcom GFR 700 AVR
    Cables- Cardas, Silnote, BJC
    Velodyne CHT 8 sub

  4. #4
    Shostakovich fan Feanor's Avatar
    Join Date
    Jun 2002
    Location
    London, Ontario
    Posts
    8,127
    I build this one a while back. The sides were scrap plywood, the base scrap 2x6, and the shelves 3/4 MDF. The shelves are adjustable except for the top and bottom. The color is ugly but I happened to have that icky color on hand.


  5. #5
    Audio Hobbyist Since 1969 Glen B's Avatar
    Join Date
    Dec 2001
    Location
    New York
    Posts
    517

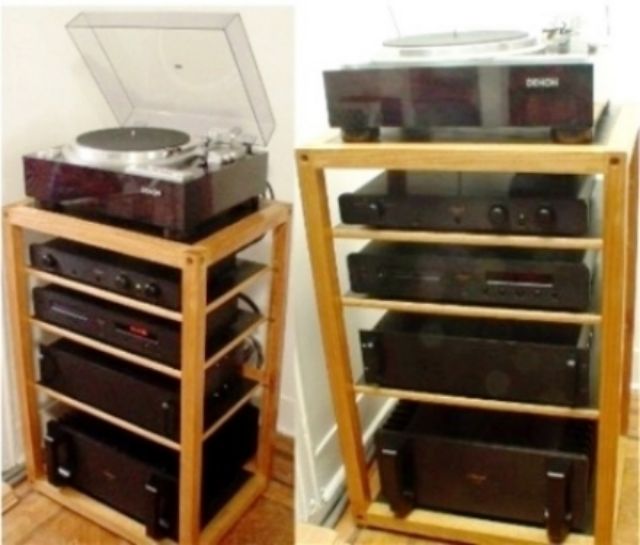

    Here's my old DIY audio rack from several years back. It was was made of 1 3/4" white oak posts. The shelves were bullnose 3/4" MDF, painted matte black, and the edges veneered with iron-on real oak. The top and bottom shelves floated on hidden spikes. The middle shelves were fixed to help with structural rigidity. A 1" x 3" cross piece of solid red oak in the back also helped to minimize flexing.


  6. #6
    Shostakovich fan Feanor's Avatar
    Join Date
    Jun 2002
    Location
    London, Ontario
    Posts
    8,127
    Quote Originally Posted by Glen B View Post
    Here's my old DIY audio rack from several years back. It was was made of 1 3/4" white oak posts. The shelves were bullnose 3/4" MDF, painted matte black, and the edges veneered with iron-on real oak. The top and bottom shelves floated on hidden spikes. The middle shelves were fixed to help with structural rigidity. A 1" x 3" cross piece of solid red oak in the back also helped to minimize flexing.

    Simple design, nice workmanship!

  7. #7
    Suspended
    Join Date
    Sep 2003
    Location
    Orange, CA
    Posts
    552
    I have a couple of photos on "Member Galleries" that I posted some years ago. It's my Home Depot Component Rack and it's as vibration-resistant as I knew how to make. With the exception of the Parts Express brass footers, all parts are available at your local H.D. All posts and crosspieces were coated with 3 coats of urathane before assembly, providing 6 coats of insulation between all wood surfaces. The brass footers were dipped in liquid rubber. The 1 1/2" platforms are 2, 3/4" MDF slabs glued together with urathane glue. After I finished the assembly, to test it out, I put my small subwoofer on the bottom shelf, and a glass of water on the top shelf. The vibrations in the water were barely perceptible. If you can get past the decidedly industrial appearance, this might be something for you to consider. If you have any questions, feel free to ask.

  8. #8
    Forum Regular
    Join Date
    Sep 2006
    Posts
    262
    Thanks a lot to all of u for the awesome replies, as always! I live in a condo, so diy options are virtually impossible, except for small projects. So I got this idea from this site IKEA Hi-Fi Stand (easy, MODULAR and f-in solid) DIY Guide
    and ordered the stuff, I'm waiting for it to be delivered. Just one question, the legs, on these as u might see are a little short, so I might need to find something to keep between the shelf and the legs, on order to get another couple of cm in height, any idea on any dampening material that I may use to do this? Sorbothane is quite expensive

  9. #9
    Forum Regular
    Join Date
    Sep 2006
    Posts
    262
    Sorry guys, but I've been reading up a lot on vibration isolation, and kind of got inundated with info!! Firstly, does vibration from ur amplifier and CD player actually translate into audible sound difference?? Also what are we talking of in a solid platform that holds ur components, does it have to be rigid/vibration free from the floor, or can it be something that decouples the component from any furniture ur keeping it on?? I'm being confused reading all this... Thanks for ur replies, I'm always getting more educated in my quest to be an audiophil and u guys have helped me immensely thanks

  10. #10
    Audio Hobbyist Since 1969 Glen B's Avatar
    Join Date
    Dec 2001
    Location
    New York
    Posts
    517
    Just get a sturdy rack that does not sway easily from side to side and has solid shelves. 3/4-inch or thicker MDF shelves are a good choice, and preferable to glass (IMO). I would worry more about vibration when it comes to a turntable setup than with other gear. Isolation of other components is highly subjective.

  11. #11
    Super Moderator Site Moderator JohnMichael's Avatar
    Join Date
    Apr 2005
    Location
    Central Ohio
    Posts
    6,307

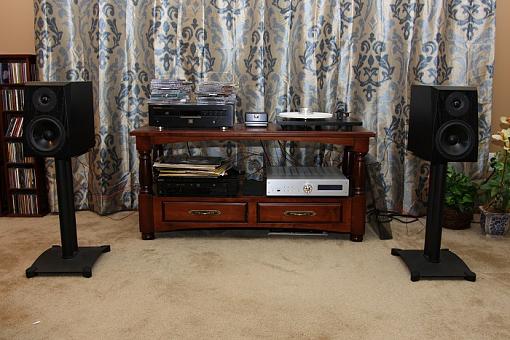

    I have a solid maple table that I use for my audio components but can also be used later as a console or buffet table. It is Amish built and very heavy. The maple absorbs vibrations very well.
    Attached Thumbnails Attached Thumbnails Building your own HiFi rack/Stacking Amp on top of CD player-001-smaller.jpg
    JohnMichael
    Vinyl Rega Planar 2, Incognito rewire, Deepgroove subplatter, ceramic bearing, Michell Technoweight, Rega 24V motor, TTPSU, FunkFirm Achroplat platter, Michael Lim top and bottom braces, 2 Rega feet and one RDC cone, Benz MC Gold, Fanfare 3/PSU 1.
    Digital
    Sony SCD-XA5400ES SACD/cd SID mat, Marantz SA 8001
    Int. Amp Krell S-300i
    Speaker
    JBL Studio 530's/Sanus SF22 stands
    Cables
    AQ SPKR and AQ XLR and IC

  12. #12
    Shostakovich fan Feanor's Avatar
    Join Date
    Jun 2002
    Location
    London, Ontario
    Posts
    8,127
    Quote Originally Posted by JohnMichael View Post
    I have a solid maple table that I use for my audio components but can also be used later as a console or buffet table. It is Amish built and very heavy. The maple absorbs vibrations very well.
    It's a nice looking piece. I think the "two column" approach is very valid; it's just as practical and more aesthetically pleasing under many circumstances than the usual, "single column" rack.
