    Titanic MKIII finished.

    Hello all

    I originally started with the Titanic MKIII 12" kit from Part's Express. Because I planned on using this sub in a music only system, I decided to scrap the P.E. cabinet (1.6f^3) I modeled the Titanic in WinIsd and decided to go with a 2.1f^3 to tighten things up a bit. Now don't get me wrong, the Titanic in kit form was fine, excellent actually, but the lower frequencies had a bit of boom that I wanted to try and eliminate.
    The biggest drawback to enlarging the cab would be loosing some bottom end, but I felt that this being for music only, the compromise of a tighter response versus a little more extension, was well worth it.

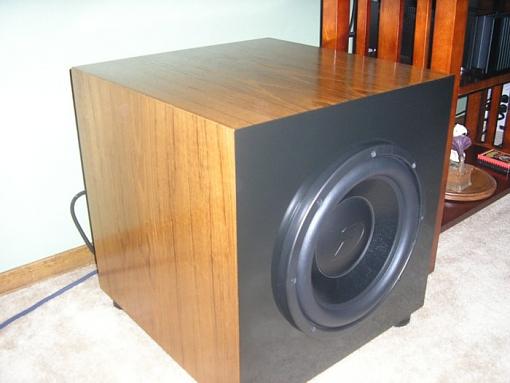

    The cabinet was built using 1" MDF, cubed 18x18x18.5, and had an internal shelf brace connecting the sidewalls and top and bottom. I also ran 1" oak dowel rods from the front baffle to the back wall.
    VERY SOLID!
    I decided to use real wood veneer, Teak, on all sides but the baffle. For the baffle, I used an Acrylic Lacquer, dark gray w/gold metalflake. This almost looks black, but in the right light the matalflake really accents the Teak quiet well.
    VERY BEAUTIFUL!
    The sound is very musical, tight and fast. In my room this beast actually is 2dB's louder at 20Hz. than at 25Hz. From 20Hz. To 250Hz. there is only a variation of 5dB. I also own the HSU VTF-2, which is also an excellent sub, but the Titanic definitely outplays it.

    To sum things up, I would have no problem recommending this sub to anyone. Buy it in the kit form, or just get the amp and driver and build your own box. You will not be disappointed.
    pix- http://www.villagephotos.com/pubbrow...elected=996743
    Attached Thumbnails Attached Thumbnails Titanic MKIII finished.-audio.jpg

  2. #2
    Loving This kexodusc's Avatar
    Join Date
    Nov 2003
    Location
    Department of Heuristics and Research on Material Applications
    Posts
    9,025
    That's a lovely unit...just curious, did you veneer the back and bottom too? Was the veneer one of those "bought in a roll" or bought in sheets deals?

  3. #3
    AR Newbie
    Join Date
    Sep 2004
    Posts
    15
    Quote Originally Posted by kexodusc
    That's a lovely unit...just curious, did you veneer the back and bottom too? Was the veneer one of those "bought in a roll" or bought in sheets deals?
    Thanks kexodusc,
    yes, all sides were veneered, including the back and bottom. I used the PSA (peel-and-stick) veneer from Rockler.com. Very, very easy to use. They sell it in 24"x24" and 24"x96" sheets.

  4. #4
    Audio Hobbyist Since 1969 Glen B's Avatar
    Join Date
    Dec 2001
    Location
    New York
    Posts
    517
    Beautiful job. I bow to you, Master. Makes my DIY sub look like a piece of crap. I finished mine with low gloss black textured paint and heat-set oak edging.

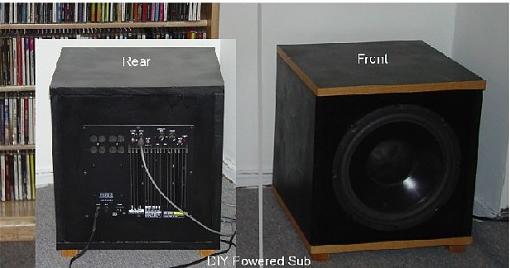

    My piece of crap sub:
    Attached Thumbnails Attached Thumbnails Titanic MKIII finished.-sub.jpg

  5. #5
    AR Newbie
    Join Date
    Sep 2004
    Posts
    15
    Glen,
    You say piece of crap sub, but nowhere on the sub do i see "BOSE". Actually it looks very nice. How does it sound?

  6. #6
    Forum Regular
    Join Date
    Feb 2004
    Location
    Chicagoland area (Streamwood, IL)
    Posts
    489
    Looks great, macebanyon! I think you did a fantastic job on the box- nice job! Even better since you said it performs very well, too! If I go this route, I would buy the whole kit since I don't want to deal with building a box- I have enough home remodeling and that's more than enough, haha!

    Thanks for directing me to the DIY section!
    Eric

  7. #7
    Audio Hobbyist Since 1969 Glen B's Avatar
    Join Date
    Dec 2001
    Location
    New York
    Posts
    517
    Quote Originally Posted by macebanyon
    Glen,
    You say piece of crap sub, but nowhere on the sub do i see "BOSE". Actually it looks very nice. How does it sound?
    It sounds quite good actually. I use it in my dedicated home theater system. Sonically It blends quite nicely with my Paradigm Mini-Monitor mains. The amp is from Parts Express. I've had it a couple of years now and feel no desire to change so that must be a good thing.

  8. #8
    DIY Dude poneal's Avatar
    Join Date
    Sep 2003
    Location
    TX, USA
    Posts
    677
    Very nice. What did you use on the teak veneer? Lacquer, acrylic, poly? Did you sand and compound, polish, and wax it? I actually built a Titanic MKII 12" a year or so ago. The sub is fine but I have to admit I like my 8" Peerless drivers better. They match my AR.Com monitors much better and sound more musical to me. Any way, great job on that veneering. Did you go with a 96" and wrap it? Well done! Paul.

  9. #9
    Forum Regular
    Join Date
    Jan 2002
    Posts
    22
    Excellent Job. I do have one question though. Why did you run the grain on the top perpendicular to the grain on the sides?
    "and no one seems to understand the glory of guitar, when out of tune, the off timing, the singers who can't sing, - the beauty of punk!"

  10. #10
    AR Newbie
    Join Date
    Sep 2004
    Posts
    15
    Poneal-
    I used Deft Lacquer
    Did the required sanding, and then just shot it
    Veneered one side at a time.

    Mpm-
    I really have no good reason why.

    Thanks all

  11. #11
    Forum Regular
    Join Date
    Jan 2002
    Posts
    22
    Nice job overall.
    "and no one seems to understand the glory of guitar, when out of tune, the off timing, the singers who can't sing, - the beauty of punk!"
