    PLK — WAGNER acoustics

    PLK — WAGNER

    We present to your attention a professional two-way speaker system, model Wagner.
    Impeccable workmanship, high quality components and the best acoustic solutions satisfy even the most sophisticated listeners. Appearance of the Wagner system sets a special atmosphere of nobility and solidity, playing a decent party in any of the most refined interior, emphasizing the high status of their owner.
    The principle of sound from one setup implemented in the system creates for the listener the only true sound architecture: having heard it once, it is no longer possible to be content with something else.
    DRIVE UNITS
    The fifteen-inch speaker easily saturates the area with sound, revealing all the emotions of a piece of music, preserving the delicacy of presentation and accurately conveying the scale of a composition. The high-frequency driver, located in the center of the main speaker, thanks to a specially developed frequency filter, harmoniously merges with the main speaker, which gives the sound absolute wholeness and realism.

    Internal structure of the Wagner system developed by our engineers, without exaggeration, represents a unique acoustic instrument. During its development we succeeded to achieve absolute neutrality of its sounding, imported with inexpressible freedom and lightness of sound.

    Uncompromising approach of our experts in the choice of acoustic solutions allowed to create the sound that can be enjoyed for hours. The main advantage of the Wagner system is the emotions, joy and happiness that they carry, keeping their owners in the world of music for hours.


    TECHNICAL SPECIFICATIONS


    Recommended amplifier power 50 – 450 Watts


    Consumption power handling 300 Watts


    RMS Frequency response 32Hz – 22kHz, (-6dB)


    Sensitivity 99dB (1Watts / 1m)


    Nominal impedance 8 OhmsTypeTwo-way


    DRIVE UNITS

    Design coaxial high-frequency and low-frequency drive units


    High-frequency 70mm (2,8”) witht titanic dome, horn-type,neodymium magnetic system


    Dispersion 80 degrees, conical


    Low-frequency 380mm (15”) withpaper diffuser, neodymium magnetic system




    CROSSOVER


    Frequency 270 Hz acustical, 900 Hz electrical


    Type Bi-wired, passive, low loss, Istorder for LF


    IInd orderfor HF


    Quarter-wavelength resonator


    CABINET


    Enclosure type Quarter-wavelength resonator


    Volume 440l


    Dimensions 1630 х 770 х 640 mm


    Weight 118kg

    plk-audio. c o m

    If you have any questions, leave them. I will gladly answer
    Last edited by IvanZ; 04-17-2019 at 02:54 AM.

  2. #2
    Forum Regular Registered Member IvanZ's Avatar
    Join Date
    Apr 2019
    Location
    Yekaterinburg, Russia
    Posts
    5

    Plk wagner

    Hi, folks.


    Everything happens on the run, so, I present the information that is on hand. Gloss will be later.

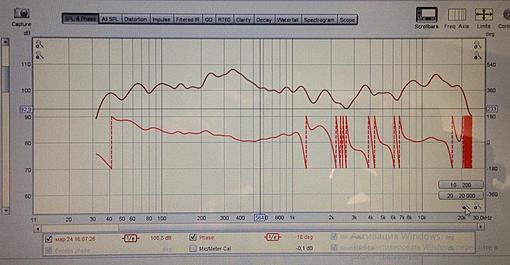

    The program which was used for measuring REW v5.18


    Measuring microphone MiniDSP UMIK-1


    Frequency response smoothed 1/6 octave filter


    Hump 200-500Hz - room response, when listening, these frequencies do not dominate


    The decline in the frequency of 2600hz is -6dB


    The measurements were performed in the range 20-30000Гц


    A little bit later, we`ll use another microphone to measure the frequency response after 20000hz

    You can freely asking the questions. If you interesting, of course.

  3. #3
    Forum Regular Registered Member IvanZ's Avatar
    Join Date
    Apr 2019
    Location
    Yekaterinburg, Russia
    Posts
    5

    PLK WAGNER asoustics

    I don`t know can I post links here, but on our site plk-audio., we have links to youtube and facebook (64 photos)


  4. #4
    Forum Regular Registered Member IvanZ's Avatar
    Join Date
    Apr 2019
    Location
    Yekaterinburg, Russia
    Posts
    5

    PLK WAGNER asoustics

    The review of professional sound engineers A. A. BOKOVIKOV and V. A. KATKOV
    (Teachers of musical sound engineering at "The Ural State Conservatory in the name of M. P. Musorgskiy» https://uralconsv.org/english-version )

    After listening to the PLK Wagner system we would like to point out a number of either positive and negative points:
    For advantages, we would like to accentuate on fairly fast focused bass without a hint of «reflex slur», that is quite a difficult task taking into account such dimensions of the speaker and the whole cabinets. These features of the low-frequency part of the spectrum have a positive effect in conditions of a non-ideal listening room. The cabinet design as a whole does not give any audible artifacts and overtones.
    Besides, as an absolute advantage, the choice of coaxial design of the two-way system should be noted. This allows you to get a fairly flat phase response in the entire range of work. We liked the good, clear and fast testing of transients, which, when using a fast and neutral studio amplifier, makes the system close in its sound to the studio far-field monitoring systems.
    In general, the system is critical to the acoustic design of the room and its location in it. It should be understood that the system of such dimensions and design will not sound correct in the rooms with low ceilings and an area of less than 30 square meters. Also, if the room is not sufficiently prepared, such features as absence of clear phantom center and significant loss of clarity of the sound stage may manifest themselves while the listener is moving around the room.
    It should be noted that after listening to the system with several amplifiers, their significant influence on the character of the whole system sound was found out. The system requires careful choice of the amplifier for the aesthetics and needs of a particular listener.

    And some video for example of sounding

    https://youtu.be/yYvcJq9-ifk

  5. #5
    Forum Regular Registered Member IvanZ's Avatar
    Join Date
    Apr 2019
    Location
    Yekaterinburg, Russia
    Posts
    5

    PLK WAGNER asoustics

    One more review from PANOV EVGENII (https://www.reportageband.ru/)



    In my view a distinctive feature of this sound system is solidity and I would even say thoroughbred sound. I spend much time at work in my studio and my ear got used to dry and accurate sound of professional studio monitors. Household acousticsas a rule hasaspecific color. Therefore, to be honest, I did not expect to hear such an accurate, “uncolored” sound. Of course, there are differences from the studio monitors sounding but Wagnermakes you believe in purity of its sound from the very first moment.

    Even if you are accustomed to sounding of the music you know, this system will open it even more deeply, making the smallest overtones audible that it seems – if you reach your hand out — you would touch the performer. Due to the large dynamic, with its “breath” the system reminded me of Tannoy Westminster. It has the same strong and expressive sound field. At this, there are differences in sound transmission. Wagner sounding seemed to be more transparent, while Tannoy accentuates the lower frequency a bit harder. And yet I would listen to Wagners due to more comfortable and unfatiguing sounding.I would like to note that PLK managed to find the line between brightness and delicacy of sound delivery: they created truly noble sounding. Thank you for the opportunity to get acquainted with such a system.

  6. #6
    AR Newbie Registered Member
    Join Date
    Jul 2019
    Location
    TP Hồ Chí Minh
    Posts
    3
    wow, so good.

  7. #7
    AR Newbie Registered Member
    Join Date
    Oct 2019
    Posts
    1
    so good
    Cung cấp sàn gỗ cao cấp & thi công lắp đặt sàn gỗ xương cá giá rẻ uy tín tại Quận 1

  8. #8
    AR Newbie Registered Member
    Join Date
    Nov 2019
    Posts
    2
    Absolutely gorgeous setup Ivan!
